Steel Weld Neck Flange GOST-33259 Carbon Steel Stainless Steel

Short Description:

Name:Welding Neck Flange
Standard:GOST-12821, GOST-33259,JIS B2220, BS 3293, SANS 1123,DIN2501
Material:Carbon Steel/ Stainless Steel
Specifications:1/2"-24" DN15-DN1200
Connection mode:Welding
Production method:Forged
Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency,
Payment: T/T, L/C, PayPal

Any inquiries we are happy to reply, please send your questions and orders.
Stock Sample is Free & Available

Product Detail

Packaging&Shipping

Advantages

Services

FAQ

Product Tags

Picture Presentation

Product Introduction

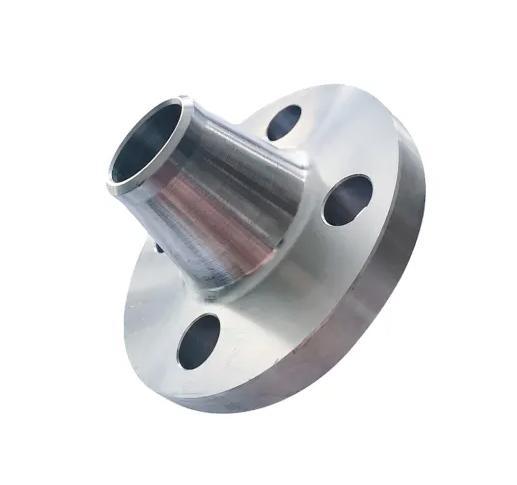

Butt-welding flange with neck refers to the flange with neck and round pipe transition and connected with pipe butt welding.
Butt-welding flanges are applicable to pipelines with large pressure or temperature fluctuations or pipelines with high temperature, high pressure and low temperature, and also to pipelines transporting expensive, flammable and explosive media.

Sealing surface form and code

Raised face (RF); Full plane (FF); Convex and convex surface (MFM); Tenon and groove surface (TG); Ring connection surface (RJ);

Material

Carbon steel flange material: 20 #, Q235, 16Mn, ASTM A105, ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70;
Stainless steel flange material: ASTM A182, F304, 304L, F316, 316L, 1Cr18Ni9Ti, 0Cr18Ni9Ti, 321, 18-8;

Standard Classification

American standard: ANSI B16.5, ANSI 16.47 Class150, 300, 600, 900, 1500 (TH, LJ, SW)

National standards: GB/T9119-2010, GB/T255-81

GOST-12821, GOST-33259,JIS B2220, BS 3293, SANS 1123

Performance Characteristics

Butt-welding flange is not easy to deform, has good sealing performance and is widely used;
Butt-welding flange connection is easy to use and can withstand relatively large pressure;
There are corresponding rigidity and elasticity requirements and reasonable butt welding thinning transition. The distance between the welded junction and the joint surface is large, and the joint surface is free from welding temperature deformation;
At the same time, it is also used in the pipeline for transporting expensive, flammable and explosive media.

Production Process

1: The whole forging process of round steel;
2. Finished product forging, cutting and forming process;

The process of neck butt-welding flange produced by our company is called die forging, which is formed by placing the heated blank in the forging die fixed on the die forging equipment;
Basic process of die forging Die forging process: blanking, heating, pre-forging, final forging, punching, trimming, tempering, shot peening;
Common processes include upsetting, drawing, bending, punching and forming;
Common die forging equipment includes die forging hammer, hot die forging press, flat forging machine and friction press.
Generally speaking, forged flange is of better quality, generally produced by die forging, with fine crystal structure and high strength, and of course, the price is also higher;


  • Previous:
  • Next:

  • 1.Shrink bag–> 2.Small Box–> 3.Carton–> 4.Strong Plywood Case

    One of our storage

    pack (1)

    Loading

    pack (2)

    Packing & Shipment

    16510247411



    1.Professional manufactory.
    2.Trial orders are acceptable.
    3.Flexible and convenient logistic service.
    4.Competitive price.
    5.100% testing,ensuring the mechanical properties
    6.Professional testing.

    1.We can guarantee the best material according to related quotation.
    2.Testing is performed on each fitting before delivery.
    3.All packages are adapt for shipment .
    4. Material chemical composition is conformed with international standard and environment standard.

    A) How can I get more details about your products?
    You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.

    B) How can I get some samples?
    If you need, we will offer you samples for free, but new customers are expected to pay express charge.

    C) Do you provide customized parts?
    Yes, you can give us drawings and we will manufacture accordingly.

    D) To which country have you supplied your products?
    We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).

    E) I can’t see the goods or touch the goods, how can I deal with the risk involved?
    Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
