Carbon Steel Stainless Steel Welded Anchor Flange 304 316 316L A694 F52

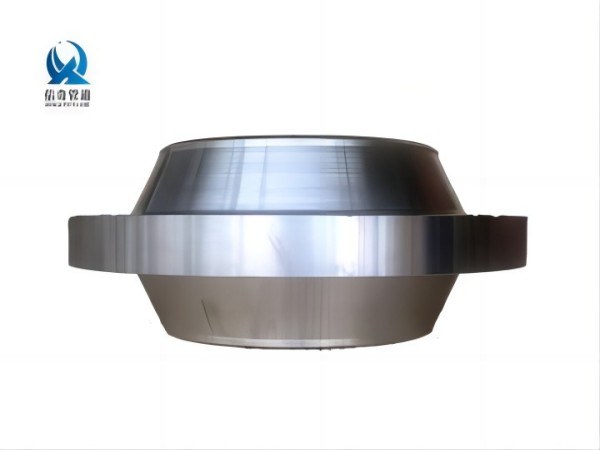

Picture Presentation
Product Data
| Anchor Flange Forged | |||||||||
| Size: | 1/2"-60" | ||||||||
| Pressure Rating: | Class150#-2500# | ||||||||
| Standard: | ANSI/ASME or as per customer's requets. | ||||||||
| Material: | Carbon Steel, Stainless Steel, Alloy Steel. | ||||||||
| Steel Grade: | ASTM A105, A350 LF1, A350LF2, A350LF3, ASTM A182 F304, F304L, F316, F316L, F321, A694 F42, F46, F50, F56, F60, D70 etc. | ||||||||
| Finish: | Rust Proof Oiled or as per customer's requirements. | ||||||||
| Application: | Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform | ||||||||
| The Anchor flange is a one-piece combination reducer and welding neck flange designed expressly for effecting pipe size increases at flanged connections to pumps, valves, compressors and other equipment. It provides a more compact, more efficient and frequently a more economical means than is permitted by the conventional two-piece combination of a concentric reducer and welding neck flange. | |||||||||
| Anchor flanges are used to restrain pipeline movement caused by thermal expansion changes or external forces. The most common method of securing an anchor flange is to embed it into a concrete thrust block, thereby spreading the pipeline forces throughout a large foundation. However, anchor flanges can be secured in other ways as necessary to overcome the axial force in the pipeline. | |||||||||
Product Introduction
Anchor flange is a connecting flange used to fix pipes, valves, equipment and instruments, etc. Anchor flanges usually consist of two parts: a fixed flange and a movable flange.
The fixed flange is usually fixed on the building structure or equipment, and fixed on the building structure or equipment by means of anchor rods or expansion bolts to ensure that the pipeline or equipment will not be displaced or vibrated during use.
The movable flange is usually connected with the flange of the pipeline, equipment or instrument, and allows slight displacement or vibration of the pipeline or equipment during use, while ensuring that the connection between the pipeline or equipment and the fixed flange will not be affected.
Anchor flanges are widely used in various constructions, machinery and industrial equipment, especially where pipelines, valves, equipment and instruments need to be fixed or supported. The anchor flange can ensure the stability and safety of the pipeline or equipment during use, reduce the occurrence of leakage or failure caused by vibration or displacement, and ensure the safety of production and the stability of equipment operation.
1.Shrink bag–> 2.Small Box–> 3.Carton–> 4.Strong Plywood Case
One of our storage
Loading
Packing & Shipment
1.Professional manufactory.
2.Trial orders are acceptable.
3.Flexible and convenient logistic service.
4.Competitive price.
5.100% testing,ensuring the mechanical properties
6.Professional testing.
1.We can guarantee the best material according to related quotation.
2.Testing is performed on each fitting before delivery.
3.All packages are adapt for shipment .
4. Material chemical composition is conformed with international standard and environment standard.
A) How can I get more details about your products?
You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.
B) How can I get some samples?
If you need, we will offer you samples for free, but new customers are expected to pay express charge.
C) Do you provide customized parts?
Yes, you can give us drawings and we will manufacture accordingly.
D) To which country have you supplied your products?
We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).
E) I can’t see the goods or touch the goods, how can I deal with the risk involved?
Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
-
