Socket Welding Flange ASME/ANSI B16.5 1/2″-3″ DN15-DN80

Short Description:

Name:Socket Weld Flange
Standard:ASME/ANSI B16.5,JIS B2220,JIS B2238
Material:Stainless Steel /Carbon Steel
Specifications:1/2"-3" Class150-Class300
Connection mode:Welding
Production method:Forging
Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency,
Payment: T/T, L/C, PayPal

Any inquiries we are happy to reply, please send your questions and orders.
Stock Sample is Free & Available

Product Detail

Packaging&Shipping

Advantages

Services

FAQ

Product Tags

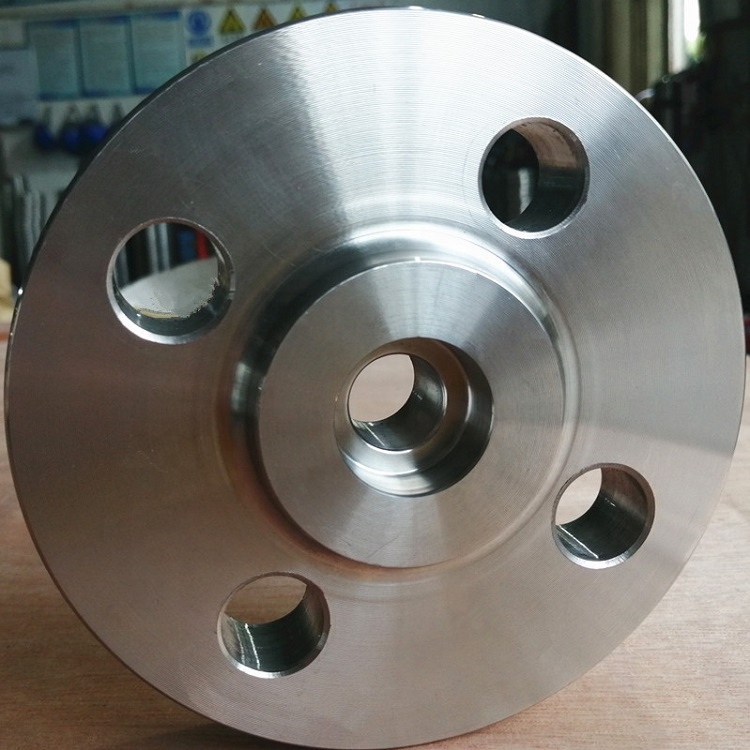

Picture Presentation

Product Introduction

Socket welding flange, also known as socket flange plate, is a flange with one end welded with steel pipe and the other end bolted;
The appearance of the socket welding flange is similar to that of the neck flat welding flange. The difference is that the size of the pipe inserted into the neck of the socket welding flange is different.

Specification and Model

DN15-DN80

Pressure Rating

PN10~PN100

Common Materials

Carbon Steel:ASTM A105,Q235, ASTM A350, ASTM A694
Stailess Steel:ASTM A182 F304,304L,F316,316L

Sealing Surface Type

RF,MFM,TG,RJ;

Connection Form

One side of the steel pipe is inserted into the inner diameter of the flange for welding, and the other side is fixed with bolts and nuts;

Production Process

The processing method of cutting in the oxygen furnace, integral forging or finished forging, cutting and forming, high-precision CNC lathe turning, CNC rocker drilling;

Data

SOCKET


  • Previous:
  • Next:

  • 1.Shrink bag–> 2.Small Box–> 3.Carton–> 4.Strong Plywood Case

    One of our storage

    pack (1)

    Loading

    pack (2)

    Packing & Shipment

    16510247411



    1.Professional manufactory.
    2.Trial orders are acceptable.
    3.Flexible and convenient logistic service.
    4.Competitive price.
    5.100% testing,ensuring the mechanical properties
    6.Professional testing.

    1.We can guarantee the best material according to related quotation.
    2.Testing is performed on each fitting before delivery.
    3.All packages are adapt for shipment .
    4. Material chemical composition is conformed with international standard and environment standard.

    A) How can I get more details about your products?
    You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.

    B) How can I get some samples?
    If you need, we will offer you samples for free, but new customers are expected to pay express charge.

    C) Do you provide customized parts?
    Yes, you can give us drawings and we will manufacture accordingly.

    D) To which country have you supplied your products?
    We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).

    E) I can’t see the goods or touch the goods, how can I deal with the risk involved?
    Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
