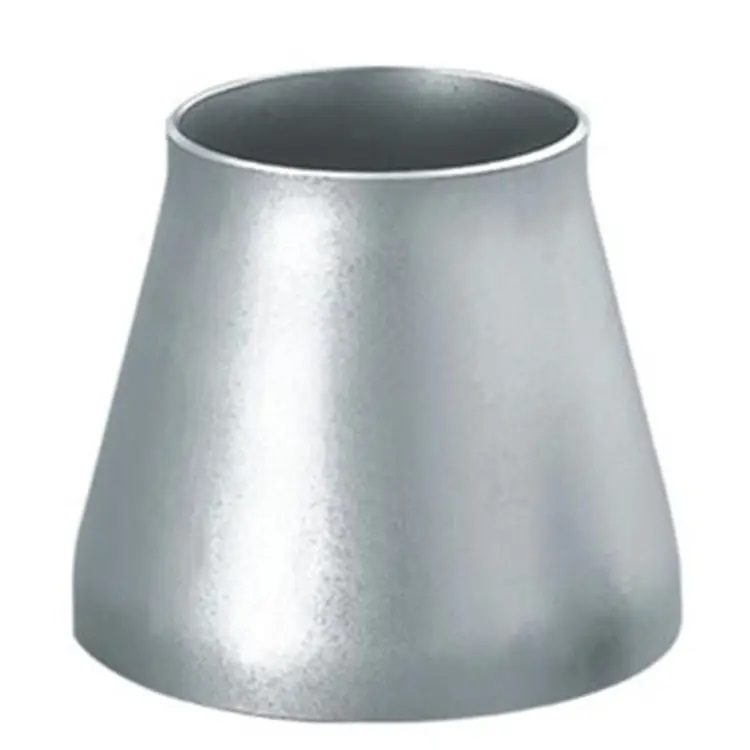

Stainless Steel Seamless Butt Weld Concentric Reducer

Short Description:

Name： Concentric Reducer
Standard：ASME B16.9
Material：Stainless Steel
Specification: 3/4 "X1/2" --- 48 "X 40" [DN 20 X 15 --- 1200 X 1000]
Wall thickness dimension: Sch 5s --160
Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency,
Payment: T/T, L/C, PayPal

Any inquiries we are happy to reply, please send your questions and orders.
Stock Sample is Free & Available

Send email to us Email Whatsapp PDF

Product Detail

Packaging&Shipping

Advantages

Services

FAQ

Product Tags

Picture Presentation

Product Introduction

The reducer whose center is in a straight line is called concentric reducer. The commonly used forming process is reducing, expanding or reducing plus expanding, and stamping can also be used for reducing pipes of certain specifications. The reducer whose center is on the same line is called concentric reducer.

Data Details

Concentric reducer
The reducer whose center is on the same line is called concentric reducer.
Product specification	3/4 "X1/2" --- 48 "X 40" [DN 20 X 15 --- 1200 X 1000]
Wall thickness dimension	Sch 5s --160
Executive standards	GB/T12459-2005, ANSI, JIS, BS, DIN, UNI, etc
Product material	carbon steel, stainless steel,
Packaging method	fumigation free wooden cases and pallets can be specially packaged according to customer requirements.
Product Quality	ISO9001:2008 quality management system certification, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety management system, pressure pipeline special equipment manufacturing license, member of the first level supply network of State Power Corporation and China National Petroleum Corporation
Product use	Oil and gas pipeline project, natural gas pipeline project, chemical plant, power plant, shipyard, pharmacy, dairy, beer, beverage, water conservancy, etc
Material	Carbon steel: 10 #, 20 #, A3, Q235A, 20G, 16Mn, ASTM A234, ASTM A105
	Stainless steel: ASTMA403, 1Cr18Ni9Ti, 0Cr18Ni9, 00Cr19Ni10, 00Cr17Ni14Mo2, 304, 304L, 316, 316L, etc

Distribution characteristics

(1) The bending moment caused by the area pressure difference between the big and small ends of the concentric reducer under the action of internal pressure causes the phenomenon that the big end opens relatively and the small end shrinks relatively; (2) Under the action of internal pressure, the circumferential stress on the inner surface of the large end of the eccentric side and the outer surface of the middle of the eccentric side of the eccentric reducer is the largest.

Type Compansion

Concentric reducer and eccentric reducer both have the functions of change the diameter and stabilize the fluid. Concentric Reducer is symmetrical, both ends are aligned along the center, while eccentric is not symmetrical, ends are off center of one another. Eccentric Reducer can be used in reverse as an eccentric increaser/expander. Ecc reducer can avoid the bad effect of liquid or gas accumulation on pipeline

Previous: Carbon Steel Butt Weld Seamless Concentric Reducer

Next: Stainless Steel Braided Bellows Compensator Flexible Hose Mesh SS321

1.Shrink bag–> 2.Small Box–> 3.Carton–> 4.Strong Plywood Case

One of our storage

pack (1)

Loading

pack (2)

Packing & Shipment

1.Professional manufactory.
2.Trial orders are acceptable.
3.Flexible and convenient logistic service.
4.Competitive price.
5.100% testing,ensuring the mechanical properties
6.Professional testing.

1.We can guarantee the best material according to related quotation.
2.Testing is performed on each fitting before delivery.
3.All packages are adapt for shipment .
4. Material chemical composition is conformed with international standard and environment standard.

A) How can I get more details about your products?
You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.

B) How can I get some samples?
If you need, we will offer you samples for free, but new customers are expected to pay express charge.

C) Do you provide customized parts?
Yes, you can give us drawings and we will manufacture accordingly.

D) To which country have you supplied your products?
We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).

E) I can’t see the goods or touch the goods, how can I deal with the risk involved?
Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
