Slip On Plate Flange with Yellow Paint

Short Description:

Name:Slip on Plate flange
Standard:AWWA C207, JIS B2220, BS 3293, SANS 1123
Material:Stainless Steel
Specifications:1/2"-24" DN15-DN1200
Scope of application: PN2.5~PN40; Class150~Class1500
Connection mode:Welding
Production method:Forging
Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency,
Payment: T/T, L/C, PayPal

Any inquiries we are happy to reply, please send your questions and orders.
Stock Sample is Free & Available

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Packaging&Shipping

    Advantages

    Services

    FAQ

    Product Tags

    Picture Presentation

    Product Introduction

    Plate type flat welding flange is the most common flange, with pressure ranging from PN15, PN20, PN25 to PN600.
    Welding form: plate type flat welding flange is used to insert the pipe into the flange for welding.
    Material: stainless steel 201304316316L, etc; Carbon steel Q235 and alloy steel.

    Scope of Application

    As the plate flat welding flange has good comprehensive performance, it is widely used in chemical industry, construction,water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, water heating, fire protection, power, aerospace, shipbuilding and other basic projects.

    Surface Treatment

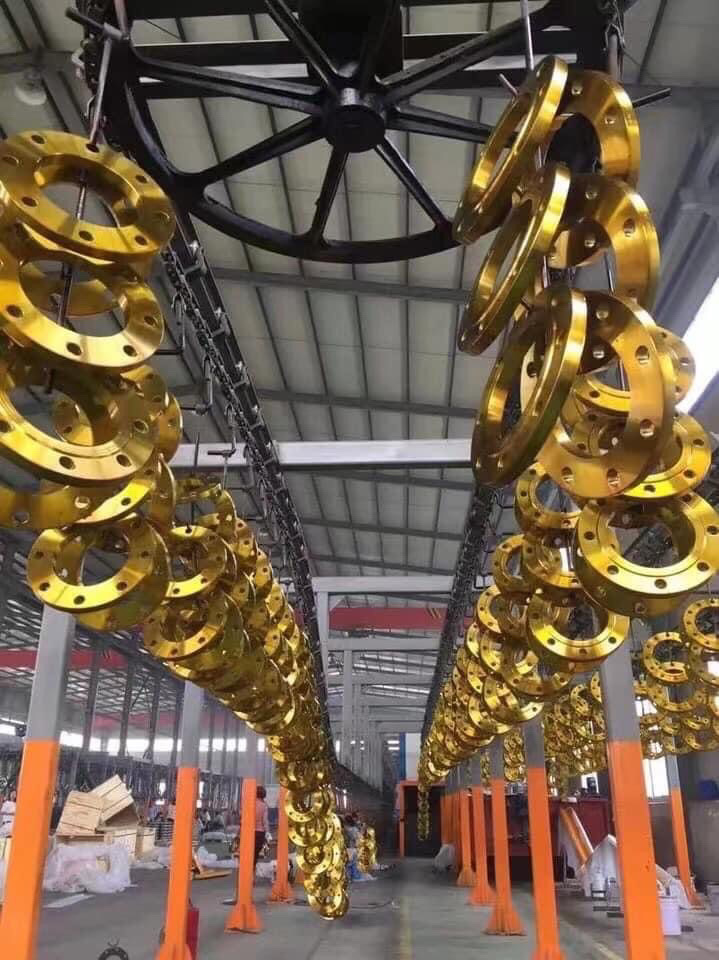

    The common form is spraying yellow paint for rust prevention.

    Size

    ASME B16.5:1/2"-24"
    ASME B16.47:26"-48"

    Rating

    150lb/300lb/600lb/900lb/1500lb/2500lb

    Standard

    ASME B16.5,ASME B16.47A,ASME B16.47, MSS SP 44, DIN 2632, DIN2633, DIN2634, DIN2635, DIN2636, JISB2220, BS4504, GB, etc

    Material

    1. carbon steel:A105,A350 LF2,A694 F52,F65;Q235 etc
    2. Stainless steel:ASTM A182 F304,304L,316,316L,321,1Cr18Ni10.A182 F51,F53,F55 etc

    Surface

    Black Painting / Anti Rust Oil / Hot Dip Galvanized

    Certification

    ISO 9001:2015

    Port of delivery

    Tianjin Port



    Slip on Flange

     Advantages and Disadvantages

    Advantages: Flat-welded flanges with necks are also flat-welded flanges, because there is a short neck, which increases the strength of the flange and improves the bearing capacity of the flange. So it can be used on higher pressure pipelines.

    Disadvantages: Compared with the plate-type flat welding flange, the cost is higher, and it is easier to bump during transportation due to its shape characteristics.




  • Previous:
  • Next:

  • 1.Shrink bag–> 2.Small Box–> 3.Carton–> 4.Strong Plywood Case

    One of our storage

    pack (1)

    Loading

    pack (2)

    Packing & Shipment

    16510247411



    1.Professional manufactory.
    2.Trial orders are acceptable.
    3.Flexible and convenient logistic service.
    4.Competitive price.
    5.100% testing,ensuring the mechanical properties
    6.Professional testing.

    1.We can guarantee the best material according to related quotation.
    2.Testing is performed on each fitting before delivery.
    3.All packages are adapt for shipment .
    4. Material chemical composition is conformed with international standard and environment standard.

    A) How can I get more details about your products?
    You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.

    B) How can I get some samples?
    If you need, we will offer you samples for free, but new customers are expected to pay express charge.

    C) Do you provide customized parts?
    Yes, you can give us drawings and we will manufacture accordingly.

    D) To which country have you supplied your products?
    We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).

    E) I can’t see the goods or touch the goods, how can I deal with the risk involved?
    Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
