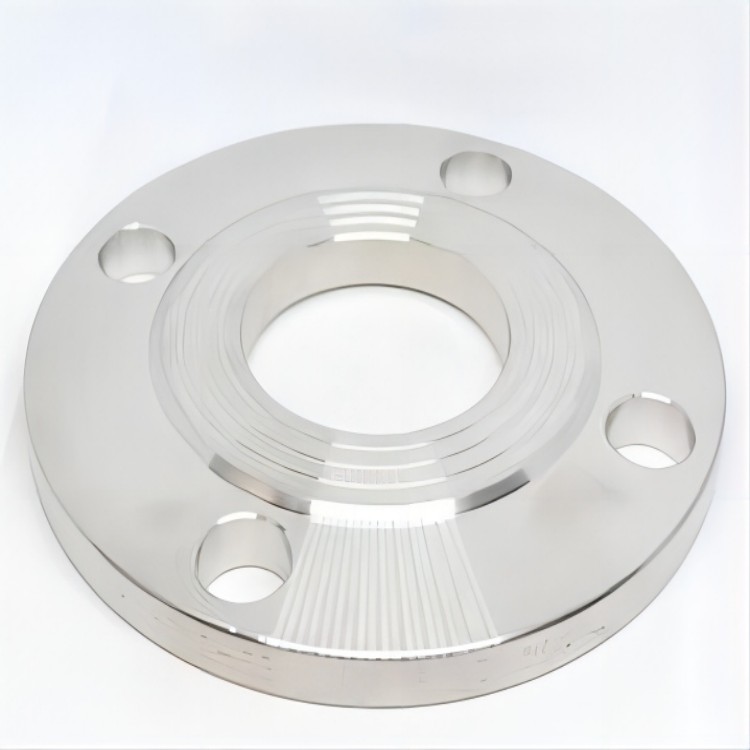

Slip On Plate Flange RF Carbon Steel Stainless Steel

Short Description:

Name:Slip on Plate flange
Standard:AWWA C207,GOST 12820,GOST 33259, DIN2501, DIN2502, DIN2503, JIS B2220, JIS B2238, BS 4504, EN1092-1,BS10
Material:Stainless Steel, Carbon Steel
Specifications:PN10-PN16 DN10-DN2000
Connection mode:Welding
Production method:Forged
Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency,
Payment: T/T, L/C, PayPal

Any inquiries we are happy to reply, please send your questions and orders.
Stock Sample is Free & Available

Product Detail

Packaging&Shipping

Advantages

Services

FAQ

Product Tags

Picture Presentation

Product Data

Slip On Plate Flange
Material Carbon steel ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH
Stainless steel ASTM A182, F304/304L, F316/316L
Standard ANSI Class 150 -Class 2500
DIN 6Bar 10Bar 16Bar 25Bar 40Bar
JIS 5K 10K 16K 20K
Sealing Face RF,FF
Connection Welding, Forged,Threaded
Surface Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer,hot-dipped Galvanized,electrical galvanized
Package 1. Wooden Case  2. As Customers' Requirements
Application Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc.

Product Introduction

RF slip on plate flange  is a common flange connection form.

RF face refers to Raised Face, which means there are protrusions at both ends of the flange to enhance the connection strength between the flange and pipelines, valves, etc.
Plate type flat welding flange is a flange formed by processing the pipes or equipment that need to be connected at both ends into a flat surface and then welding it.

Size
Sizes range from 1/2 inch to 80 inch, i.e. DN15 to DN2000

Pressure level range
Generally, it can withstand pressure levels ranging from 150LB to 2500LB.
RF plate welding flange is a common pipeline connection accessory, commonly used in high-pressure pipeline systems. It usually consists of two circular metal plates, fastened together by bolts, with a rubber or metal gasket sandwiched between them.

Application
1. Petrochemical industry: oil, natural gas, chemicals, etc
2. Industrial fields such as paper making, water treatment, and food processing
3. Construction, heating, ventilation, air conditioning and other fields
The RF face flat welding flange has reliable sealing performance and high pressure test ability, and is widely used in high-pressure pipeline systems and other environments that require reliable sealing.

Selection criteria

1. Size standards: There are many size standards for RF plate flange, and the appropriate size needs to be selected based on the actual situation. In general, the corresponding flange size is selected based on the diameter of the pipeline or equipment.
2. Material standards: There are also many types of materials for RF panel type flat welding flanges, including carbon steel, stainless steel, alloy steel, etc. When selecting, it is necessary to choose the appropriate material based on the usage environment and the properties of the medium.
3. Flange connection standards: The connection methods for RF flat flanges can be threaded connection, butt welding connection, etc., and suitable connection methods need to be selected according to actual needs.
4. Pressure bearing standard: The pressure bearing capacity of RF flat plate flange must comply with relevant national and industry standards, and cannot be lower than the required pressure bearing requirements.
5. Installation standards: The installation of RF panel type flat welding flanges needs to follow relevant installation standards and specifications to ensure installation quality and sealing performance.


  • Previous:
  • Next:

  • 1.Shrink bag–> 2.Small Box–> 3.Carton–> 4.Strong Plywood Case

    One of our storage

    pack (1)

    Loading

    pack (2)

    Packing & Shipment

    16510247411



    1.Professional manufactory.
    2.Trial orders are acceptable.
    3.Flexible and convenient logistic service.
    4.Competitive price.
    5.100% testing,ensuring the mechanical properties
    6.Professional testing.

    1.We can guarantee the best material according to related quotation.
    2.Testing is performed on each fitting before delivery.
    3.All packages are adapt for shipment .
    4. Material chemical composition is conformed with international standard and environment standard.

    A) How can I get more details about your products?
    You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.

    B) How can I get some samples?
    If you need, we will offer you samples for free, but new customers are expected to pay express charge.

    C) Do you provide customized parts?
    Yes, you can give us drawings and we will manufacture accordingly.

    D) To which country have you supplied your products?
    We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).

    E) I can’t see the goods or touch the goods, how can I deal with the risk involved?
    Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
