Barred tee

Product Information:

Tee for pipe fittings. Also called fitting tee or tee fitting, tee joint, used in the main pipe to branch pipe.

Tee is with three pipe end, namely one entrance, two exits; or a chemical pipe fitting that have two inlet, one outlet, and there are T and Y shape, equal diameter pipe end, and also have different-diameter pipe end, used for three same or different pipeline convergence. The main function of tee is to divert or confluence the fluid.

A234WPB Mechanical properties:

Tensile strength σ B (MPa) : ≥410(42) yield strength σ S (MPa) : ≥245(25) Elongation δ5 (%) : ≥25 area reduction ψ (%) : ≥5, hardness: no heat treatment,≤156HB, sample size: 25mm

Material: Fence teeBarred teeAmerican standard ASme standard elbow fittings Tube thickness: 10(mm)
Origin Cangzhou Diameter: 3
Type: The horizontal type Wall thickness: 8
Rank: A Brand: XINQI PIPELINE
Special functions:   Implementation Standards:
Specificiation:   Production standards: National standards :GB/T12459,GB/T13401。 American standards: ASME B16.9



German standards:DIN2615

Category: Tee

Fields of application

Used in petroleum, chemical, nuclear power plants, food manufacturing, construction, shipbuilding, papermaking, medicine and other industries. Uses: water, beverages, beer, food, petrochemical, nuclear power, machinery, medical equipment, fertilizers, shipbuilding, waterproof treatment, pipelines, etc.



Use: Pipe connections

df4e7f1e2a8e092ebe94e2c2cd2ce48

acabc168da885922d1249b7c16c20be

4644453e23f7408cd9aa450371bd9e4



The difference between Ordinary carbon steel tee and Barred tee

Ordinary carbon steel tee Barred tee

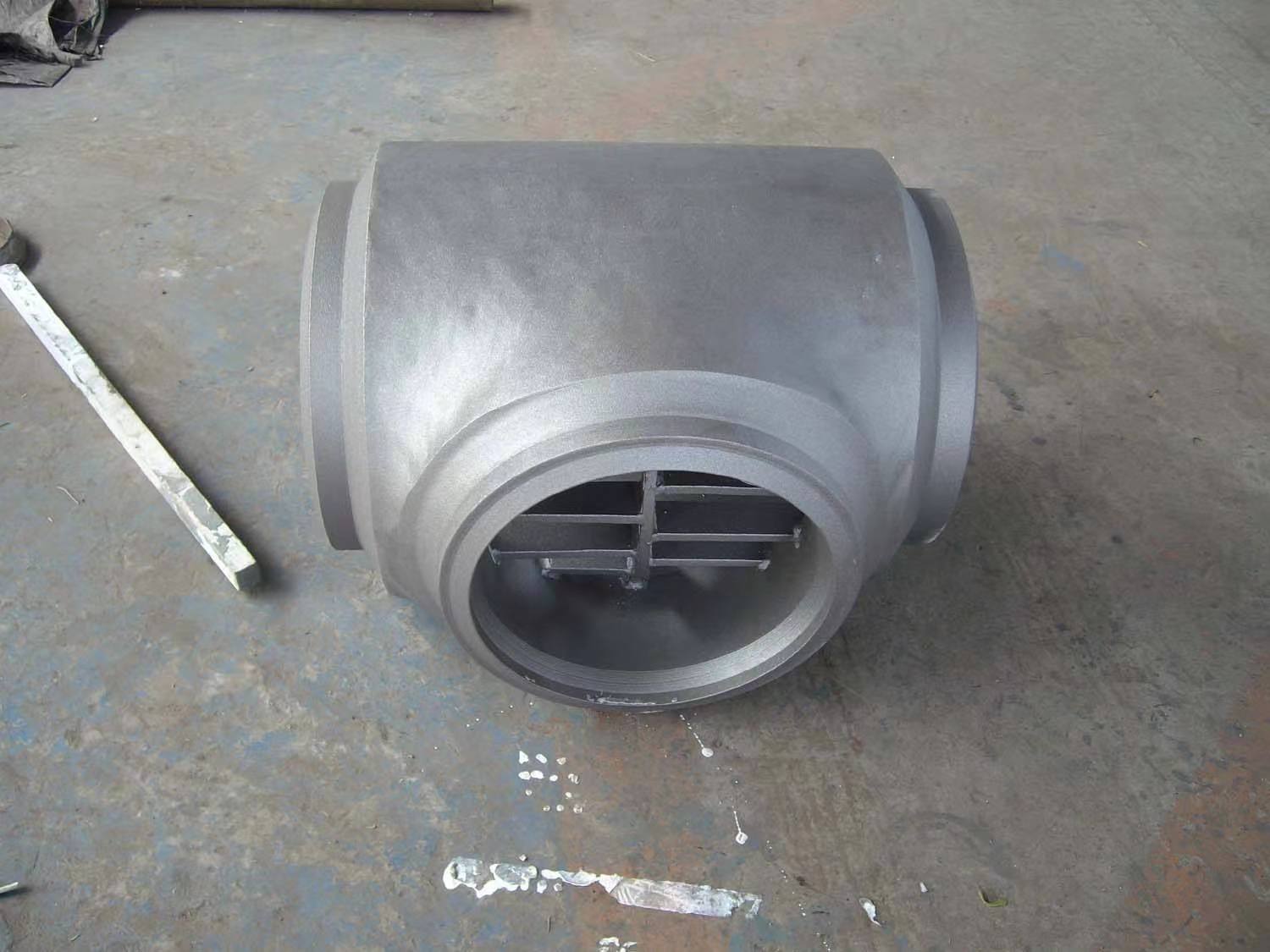

Carbon steel tee is also a kind of pipe fittings, generally there are two kinds. Equal diameter tee, both ends of the same diameter, branch pipe and the other two diameters different called reducer tee. Barred tee is in the three branch pipe according to the standard to join the bar, to prevent the pigging ball into the branch pipe, so the barred tee is also called barred tee, or pigged tee.




Post time: Jun-28-2022
