New Arrival China RTJ Flange Class900 - ASME/ANSI B16.5 stainless steel Weld Neck Flange – Xinqi

Product Discription

    Neck butt welding flange refers to a flange with a tapered neck and butt welding with the cylinder or pipe. It is an integral flange.

    Due to the transition structure of the tapered neck and the butt welding connection, the strength and rigidity of the flange are strengthened, and the sealing performance is better than that of the flat welding flange. The disadvantage is that it needs to be made of forgings, which consumes a lot of materials and costs a lot. It is suitable for occasions with high pressure, high temperature or high sealing requirements.

Features

The difference between SO and WN

First, the structure is different

1. Flat welding flange with neck: It is a flange that extends steel pipes, pipe fittings, etc. into the flange to connect with equipment or pipelines through fillet welds.

2. Butt welding flange with neck: a flange with a neck and a round pipe transition and connected to the pipe butt welding.

Second, the scope of application is different

1. Flat welding flange with neck: there is a short neck, which increases the strength of the flange and improves the bearing capacity of the flange. So it can be used on higher pressure pipelines.

2. Butt welding flange with neck: suitable for pipelines with large fluctuations in pressure or temperature or pipelines with high temperature, high pressure and low temperature, for the connection of pipelines and valves with PN greater than 2.5MPa; also used for transportation of expensive and flammable , on the pipeline of explosive medium.

3. Different forms of welds

1. Flat welding flange with neck: the welding seam between pipe and flange with flat neck flange is fillet weld.

2. Neck butt welding flange: The welding seam between the neck butt welding flange and the pipe is a girth weld.

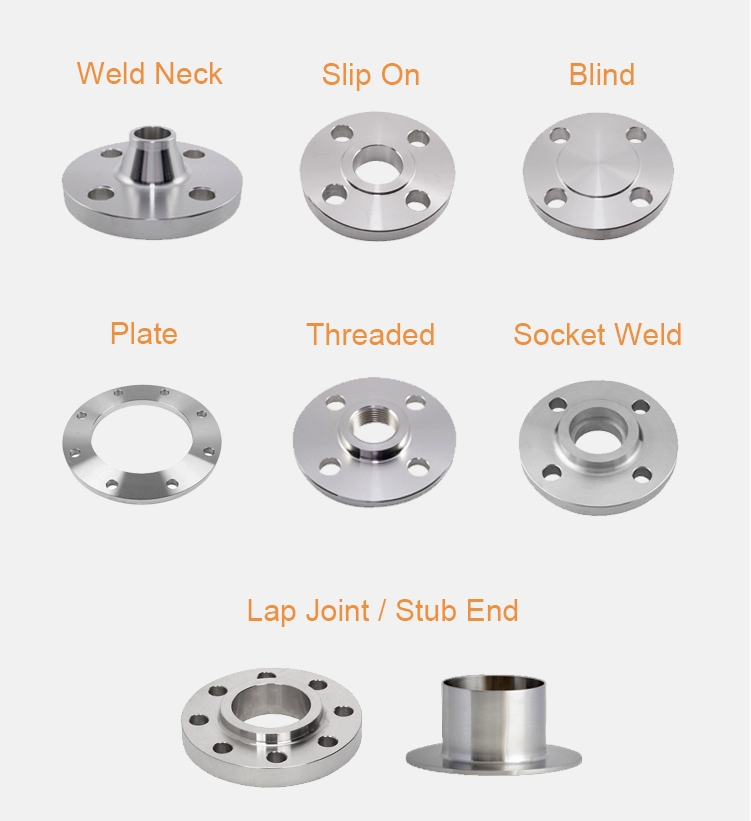

Flange Types

Packing & Shipment

1.Shrink bag–> 2.Small Box–> 3.Carton–> 4.Strong Plywood Case

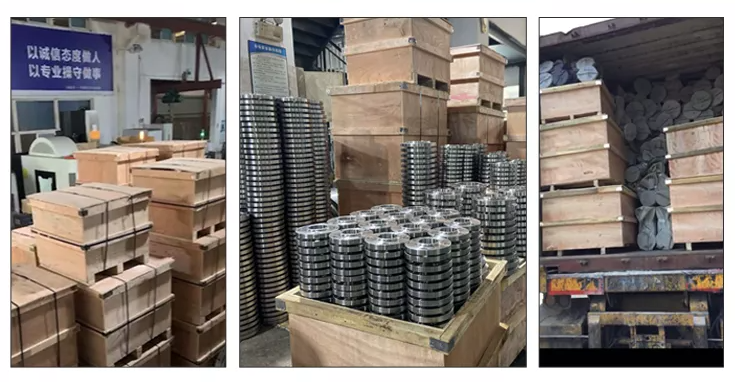

One of our storage

Loading

Packing & Shipment

1.Professional manufactory.
2.Trial orders are acceptable.
3.Flexible and convenient logistic service.
4.Competitive price.
5.100% testing,ensuring the mechanical properties
6.Professional testing.

1.We can guarantee the best material according to related quotation.
2.Testing is performed on each fitting before delivery.
3.All packages are adapt for shipment .
4. Material chemical composition is conformed with international standard and environment standard.

A) How can I get more details about your products?
You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.

B) How can I get some samples?
If you need, we will offer you samples for free, but new customers are expected to pay express charge.

C) Do you provide customized parts?
Yes, you can give us drawings and we will manufacture accordingly.

D) To which country have you supplied your products?
We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).

E) I can’t see the goods or touch the goods, how can I deal with the risk involved?
Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
