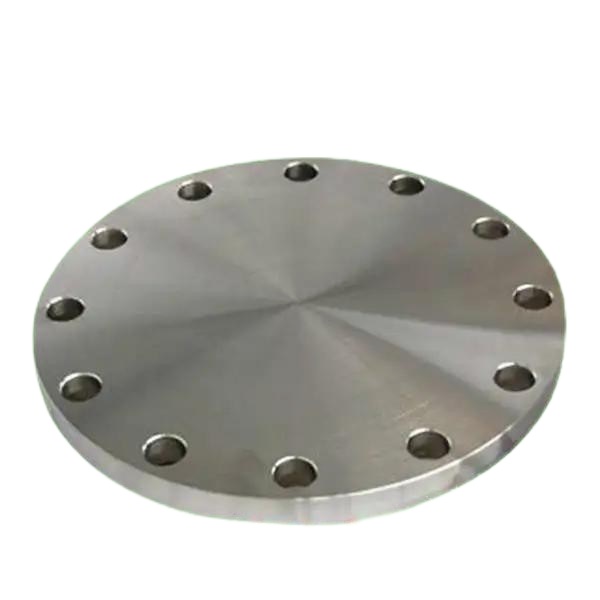

DIN 2527 Blind Flange Stainless Carbon Steel PN6-100 DN10-1000 TP304 1.4307/1.4301

Short Description:

Name: Blind Flanges
Standard:DIN 2527
Material:Carbon Steel/ Stainless Steel
Specifications:PN6/10/16/25/100 DN10-1000
Connection mode: Welding
Production method:Forging
Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency,
Payment: T/T, L/C, PayPal

Any inquiries we are happy to reply, please send your questions and orders.
Stock Sample is Free & Available

Product Detail

Packaging&Shipping

Advantages

Services

FAQ

Product Tags

Picture Presentation

Data

Product Name Blind flange
Size 1/2"-80" DN15-DN2000
Pressure Class150#-Class2500#,PN6-PN25
Standard ANSI B16.5,EN1092-1, SANS 1123, JIS B2220,JIS B2238 DIN2527, GOST 12836,etc.
Wall thickness SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.
Material Stainless steel: A182F304/304L, A182 F316/316L, 904L,  and etc.
Carbon steel: A105, A350LF2, S235Jr, S275Jr, St37, St45.8, A42CP, A48CP, E24 , A515 Gr60, A515 Gr 70 etc.
Application Petrochemical industry;aviation and aerospace industry;pharmaceutical industry;gas exhaust;power plant;ship building;water treatment,etc.
Advantages ready stock,faster delivery time;available in all sizes,customized;high quality

DIN2527

DIN2527 PN16 25

Product Introduction

The formal name of blind flange is flange cover, but some are also called blind flange. It is a flange without holes in the middle, which can be used to plug the pipe orifice. The function of blind flange is the same as that of head and pipe cap, but the difference is that the blind flange seal is a removable sealing device, and the head seal is not ready to be opened again.
There are many types of sealing surfaces of blind flange, including plane, convex, concave and convex, tenon and groove surfaces and ring connection surfaces.
Materials include carbon steel, stainless steel, alloy steel, copper, aluminum, PVC, PPR, etc

The blind flange is mainly used to completely isolate the production medium, to prevent the production from being affected or even causing accidents due to the untight closing of the shut-off valve.
The blind flange shall be set at the position requiring isolation, such as the equipment nozzle, the front and back of the shut-off valve or between two flanges. The spectacle blind is often recommended;
Plug plates can also be used for one-time parts such as pressure and purging, which is often referred to as round blind flange.

Role and Function

The blind flange plays the same role of isolation and cutting off as the head and pipe cap. Because of its good sealing performance, it is generally used as a reliable means of isolation for systems requiring complete isolation. The blind plate is a solid circle with a handle, which is used for the system in the isolation state under normal conditions

The function of blind flange is very important. The blind flange is needed in the repair and maintenance of the pipeline. Without it, if the flow cannot be cut off at the valve of the pipeline, the flow of several meters of pipeline will be affected.
Therefore, since the use of flanged pipes has greatly improved the construction of pipes, the role of blind flanges can also be immeasurable.








  • Previous:
  • Next:

  • 1.Shrink bag–> 2.Small Box–> 3.Carton–> 4.Strong Plywood Case

    One of our storage

    pack (1)

    Loading

    pack (2)

    Packing & Shipment

    16510247411



    1.Professional manufactory.
    2.Trial orders are acceptable.
    3.Flexible and convenient logistic service.
    4.Competitive price.
    5.100% testing,ensuring the mechanical properties
    6.Professional testing.

    1.We can guarantee the best material according to related quotation.
    2.Testing is performed on each fitting before delivery.
    3.All packages are adapt for shipment .
    4. Material chemical composition is conformed with international standard and environment standard.

    A) How can I get more details about your products?
    You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.

    B) How can I get some samples?
    If you need, we will offer you samples for free, but new customers are expected to pay express charge.

    C) Do you provide customized parts?
    Yes, you can give us drawings and we will manufacture accordingly.

    D) To which country have you supplied your products?
    We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).

    E) I can’t see the goods or touch the goods, how can I deal with the risk involved?
    Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
