Carbon Steel BW Stub End Butt Welding Fittings

Short Description:

Name:Stub End
Standard:ASME B16.9
Material:Carbon Steel
Specifications:1/2"-24" DN15-600
Connection mode:Welding
Payment: T/T, L/C, D/P, PayPal

Any inquiries we are happy to reply, please send your questions and orders.
Stock Sample is Free & Available

Product Detail

Packaging&Shipping

Advantages

Services

FAQ

Product Tags

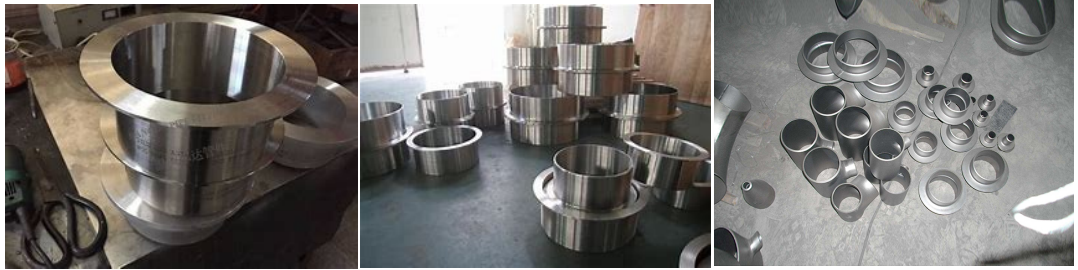

Picture Presentation

Product Introduction

The flanging nipple is one of the steel butt-welded pipe fittings. Generally, it is a section inside the loose flange.

In the flanging process, the outer edge of the roughened part is usually a non-deformation area due to the constraint of the blank holder force or the large ratio of the outer edge width to the diameter of the flanging hole. The rigid wall part has been deformed, which is a force transfer area, and the bottom of the hole is a deformation area. The deformation area is in a two-way tensile stress state (the stress in the direction of the plate thickness is ignored). The deformation area will become thinner under the action of the tensile stress, which is the same as the bulging. For the inner hole flanging deformation area of non-circular hole, its stress and strain distribution is uneven along the flanging line. Under the same flanging height, the tangential tensile stress and tangential elongation deformation are larger at the part with smaller radius of curvature; while the tangential tensile stress and tangential elongation deformation are smaller at the part with larger radius of curvature

Production process

Forming application industries by cold or hot processing methods such as bending, extrusion, pushing, molding and mechanical processing:
Power, oil and gas, petrochemical, chemical, shipbuilding, heat supply, paper making, gold treatment, etc
Size flanging: 1/2 "~24" DN15-DN600
Wall thickness: Sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s, maximum wall thickness: 200mm

Overview of details

Product Name

BUTT WELDING STUB END

Material

SS304,SS316,A234WPB,A420WPL6 St37,St45, E24,A42CP, 16Mn,Q345,P245GH,P235GH,P265GH,P280GH,P295GH,P355G

Size

1/2”-48”(Larger size can be customized)

Wall thickness

SCH10~SCH160,STD,XS,XXS;JIS;DIN

Type

Long pattern / short pattern

Standard

ANSI B16.9, ASME, JIS, DIN, EU, BS

Package

Pallets, wooden cases

Used

Oil&Gas industy;pharmaceutical industry;gas exhaust;power plart;ship buliding;water treament,etc.

Remark

If you have special custom requirements, please specify when contacting

Technical catalog

hdhgf

Packaging&Shipping

kjh (2)


  • Previous:
  • Next:

  • 1.Shrink bag–> 2.Small Box–> 3.Carton–> 4.Strong Plywood Case

    One of our storage

    pack (1)

    Loading

    pack (2)

    Packing & Shipment

    16510247411



    1.Professional manufactory.
    2.Trial orders are acceptable.
    3.Flexible and convenient logistic service.
    4.Competitive price.
    5.100% testing,ensuring the mechanical properties
    6.Professional testing.

    1.We can guarantee the best material according to related quotation.
    2.Testing is performed on each fitting before delivery.
    3.All packages are adapt for shipment .
    4. Material chemical composition is conformed with international standard and environment standard.

    A) How can I get more details about your products?
    You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.

    B) How can I get some samples?
    If you need, we will offer you samples for free, but new customers are expected to pay express charge.

    C) Do you provide customized parts?
    Yes, you can give us drawings and we will manufacture accordingly.

    D) To which country have you supplied your products?
    We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).

    E) I can’t see the goods or touch the goods, how can I deal with the risk involved?
    Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
